Flat Honing and Lapping with Two-Wheel Machines
>
Appendix
Flat Honing and Lapping with Two-Wheel Machines
By: A.W. Stahli / B. Stahli
Resources
Table of Contents
The Principle
The Basic Lapping / Flathoning Process
Description of a Two-Wheel Machine
Features of the Various Series
Machining Tools
Flathoning - "Clean Lapping"
Work Pieces and Removal
Keeping the Working Wheels Flat
Measuring - Results
Additional Fixtures, Loading and Unloading Systems
Cylindrical Lapping on Two-Wheel Machines
Comparison of Single-Wheel and Two-Wheel Machines
Application Areas and Future for Two- Wheel Machines
Appendix
Consultation and Sales, Machining and Testing Centers
Download PDF
Appendix
Figure 38: Planetary-drive system II

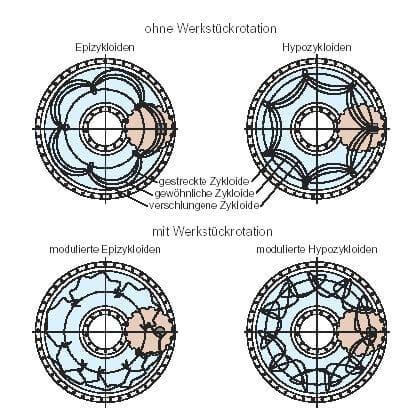

Figure 39: Machining paths of the workpieces during the two-wheel machining
